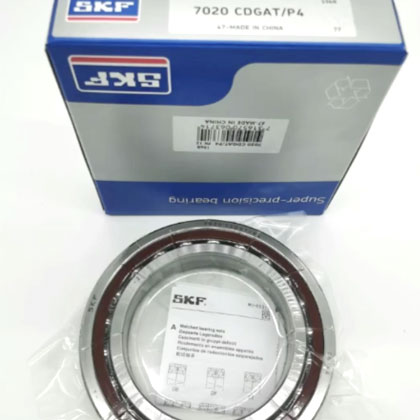

Categories: Angular Contact Ball Bearing
|
d |
100 mm | Bore diameter |
|
D |
150 mm | Outside diameter |
|
B |
24 mm | Width |
|
d1 |
115.4 mm | Shoulder diameter of inner ring (large side face) |
|
d2 |
115.4 mm | Shoulder diameter of inner ring (small side face) |
|
D1 |
134.6 mm | Shoulder diameter of outer ring (large side face) |
|
r1,2 |
min.1.5 mm | Chamfer dimension (large side face) |
|
r3,4 |
min.1 mm | Chamfer dimension (small side face) |
|
a |
28.8 mm | Distance from side face to pressure point |
|
da |
min.107 mm | Diameter of shaft abutment |
|
db |
min.107 mm | Diameter of shaft abutment |
|
Da |
max.143 mm | Diameter of housing abutment |
|
Db |
max.146 mm | Diameter of housing abutment |
|
ra |
max.1.5 mm | Radius of fillet |
|
rb |
max.1 mm | Radius of fillet |
|
dn |
118.7 mm | Position of oil nozzle |
