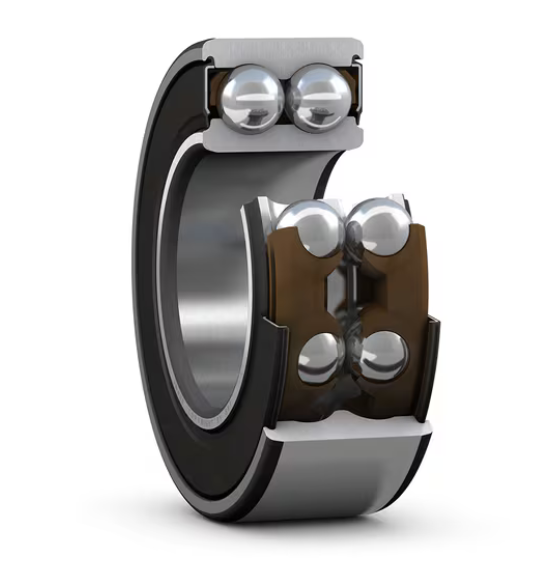

Categories: Angular Contact Ball Bearing
| Dimensions | ||
| d | 1.7717 in | Bore diameter |
| D | 3.3465 in | Outside diameter |
| B | 1.189 in | Width |
| d2 | ≈ 2.0787 in | Recess diameter inner ring shoulder |
| D2 | ≈ 3.0354 in | Recess diameter outer ring shoulder |
| r1.2 | min. 0.0433 in | Chamfer dimension inner ring |
| a | 1.9291 in | Distance pressure point(s) |
| Abutment dimensions | ||
| da | min. 2.0472 in | Abutment diameter shaft |
| da | max. 2.0669 in | Abutment diameter shaft |
| Da | max. 3.0709 in | Abutment diameter housing |
| ra | max. 0.0394 in | Fillet radius |
| Calculation data | ||
| SKF performance class | SKF Explorer | |
| Basic dynamic load rating | C | 11 690 lbf |
| Basic static load rating | C0 | 9 330 lbf |
| Fatigue load limit | Pu | 396 lbf |
| Limiting speed | 5 300 r/min | |
| Calculation factor | kf | 0.06 |
| Limiting value | e | 0.8 |
| Calculation factor | X | 0.63 |
| Calculation factor | Y0 | 0.66 |
| Calculation factor | Y1 | 0.78 |
