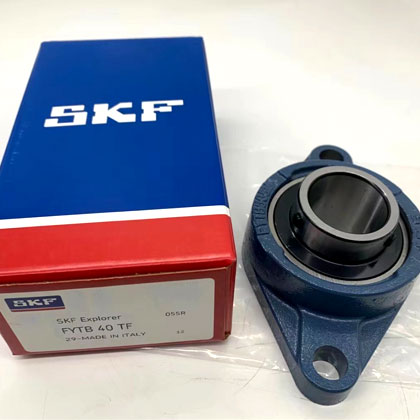

d |
40 mm | Bore diameter |
|
d1 |
≈51.8 mm | Outer diameter inner ring |
|
A |
38.5 mm | Overall width |
|
A1 |
14 mm | Flange width |
|
A3 |
3.2 mm | Depth of centring recess |
|
A5 |
26 mm | Width including end cover |
|
B |
49.2 mm | Width of inner ring |
|
B4 |
8 mm | Distance from locking device side face to thread centre |
|
Db1 |
98 mm | Top external diameter |
|
Db2 |
102 mm | Base external diameter |
|
Dc |
88.9 mm | Diameter of housing centering recess |
|
H |
171.5 mm | Overall height |
|
J |
143.5 mm | Distance between attachment bolts |
|
L |
102 mm | Overall length |
|
N |
14 mm | Diameter of attachment bolt hole |
|
s1 |
30.2 mm | Distance from locking device side face to raceway centre |
|
T |
54.2 mm | Overall unit width |
|
THREADED HOLE |
||
|
RG |
1/4-28 UNF | Housing thread for grease fitting |
|
R1 |
24.5 mm | Axial position of the housing thread |
|
Rα |
45 ° | Angular position of the housing thread |
| GREASE FITTING | ||
|
DN |
6.5 mm | Diameter of head sphere of grease fitting |
|
SWN |
7 mm | Hexagonal key size for the grease fitting |
|
GN |
1/4-28 SAE-LT | Thread of the grease fitting |
|
DOWEL PINS |
||
|
J6 |
115.5 mm | Distance of dowel pins |
|
J7 |
16 mm | Axial offset of dowel pins |
|
N4 |
2 mm | Recommended diameter for dowel pins |
